Westfield UTX

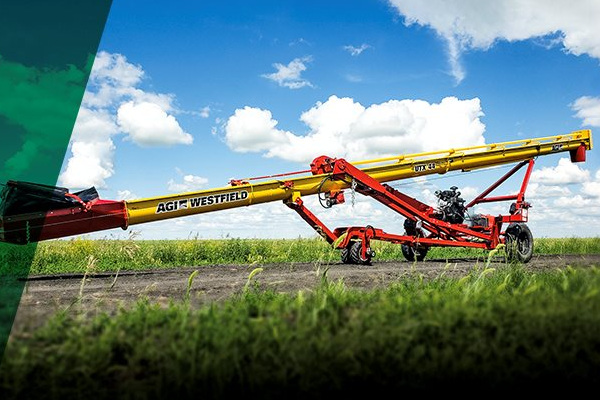

Westfield UTX for sale at Assmans Implement, Inc., Mission, South Dakota

Double tap to zoom

Westfield UTX for sale at Assmans Implement, Inc., Mission, South Dakota



Features

AGI Westfield’s newest U-Trough Auger, the UTX was built to out-perform. Delivering up to 9,000 bushels per hour, the UTX features triple banded belts to reduce slippage, a self-leveling motor maintaining proper tension at all heights, and a heavy-duty self-propelled mover kit with joystick hydraulic steering to make setting up and moving around the yard as fast and easy as possible.

  • Reversing Gearbox Comes with shifting linkage and lockout, allowing the operator to safely reverse the auger at all angles.
  • Collapsing Spring Loaded Hopper Extension Quickly and easily fit under some of your lowest and hardest to reach bin unloads and hopper bins with our collapsing spring loaded hopper extension.
  • Self-Propelled Heavy-Duty Mover Featuring all-wheel drive, hydraulic steering and rugged all-terrain tires capable of handling tough terrain, this compact mover kit gives better access to large diameter hopper bins and a sharper turning radius. Comes standard with hydraulic steering.
  • Gas Motor Choose either a Vanguard or Kohler gas motor, with a large 44-liter gas tank that lets you work as long as you need to.
  • Work Lights LED work lights allow you to keep working, even in low-light settings.
  • Triple-Groove Electric Clutch Start and stop the auger without shutting down the gas engine drives.

Specs

TROUGH GAUGE 12 GA
TROUGH CONNECTORS ¼" Flange
MAIN FLIGHTING 10" OD x 7 GA stretched + welded
INTAKE FLIGHTING 10" OD x 7 GA welded with Wear Edge Technology™
FLIGHTING SHAFT 2" OD x 0.120" Wall tubing
DRIVESHAFT 1 - ½" OD x 10 GA tubing
DRIVESHAFT BEARINGS 1 - ½" Oil impregnated hardwood bearings
TRACK High yield 11 GA roll formed
TRACK SHOE 2 - ¾" Steel roller
UNDERCARRIAGE 3" Square tubing
AXLES 2 - ½" Square tubing
HUB & WHEELS 4 Bolt agricultural type hubs, 15" wheel
LIFT CABLE ¼" Aircraft type galvanized steel cable
TIRES 15 Agricultural tires
TOP DRIVE #80 Roller chain & hardened steel sprockets
TOP DRIVE BEARINGS 1 - ¼" Pillow block
WINCH Reduction gear with automotive brake
GEARBOX Formed steel gears with tapered roller bearings
WHEEL TREAD 96"
GAS HORSEPOWER (HP) 37 - 38
CAPACITY 7,000 - 9,000 BPH
