Koyker Manufacturing has front end loaders for all major tractor brands, including: John Deere, Kubota, McCormick, New Holland and Case IH. Koyker loaders are designed, engineered and built in the USA. All Koyker loaders come with a 2 year warranty. They are built to handle big loads while the self-storing stands allow for quick mounting and dismounting.

Koyker Loaders

  • Model 50

    Model 50

    ItemSpecs
    Bucket Size 3 ft. 6 in.
    Rated Flow 4 GPM
    Maximum Pressure 2000 PSI
    Lift Cylinder Diameter 1 1/2 in. Bore
    Attachment Cylinder Diameter 1 1/2 in. Bore
    Tractor Horsepower Range 10-25
    Maximum Lift Height To Pivot Pin 5 ft. 10 in.
    Lift Height Under Level Bucket 5 ft. 3 in.
    Clearance With Bucket Fully Dumped 4 ft. 4 in.
    Maximum Dump Angle 37 Degrees
    Digging Depth 3 in.
    Overall Height In Carry Position 3 ft. 8 in.
    Lift Capacity To Maximum Height At Pivot Pin 700 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 470 lbs
    Breakout Force At Ground Line At Pivot Pin 1240 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 870 lbs
    Raising Time 3 seconds
    Lower Time 2 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds



  • Model 80

    Model 80

    ItemSpecs
    Bucket Size 3 ft. 6 in.
    Rated Flow 4 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 1 1/2 in. Bore
    Attachment Cylinder Diameter 1 1/2 in. Bore
    Tractor Horsepower Range 12-25
    Maximum Lift Height To Pivot Pin 6 ft.
    Lift Height Under Level Bucket 5 ft. 5 in.
    Clearance With Bucket Fully Dumped 4 ft. 4 in.
    Reach At Maximum Lift Height 2 ft. 1 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 4 in.
    Overall Height In Carry Position 3 ft. 11 in.
    Lift Capacity To Maximum Height At Pivot Pin 960 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 700 lbs
    Breakout Force At Ground Line At Pivot Pin 1700 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 1220 lbs
    Raising Time 3 seconds
    Lower Time 2 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 120

    Model 120

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 5 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 1 3/4 in. Bore
    Attachment Cylinder Diameter 1 3/4 in. Bore
    Tractor Horsepower Range 14-30
    Maximum Lift Height To Pivot Pin 7 ft. 1 in.
    Lift Height Under Level Bucket 6 ft. 6 in.
    Clearance With Bucket Fully Dumped 5 ft. 4 in.
    Reach At Maximum Lift Height 1 ft. 3 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 4 in.
    Overall Height In Carry Position 3 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 1250 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 850 lbs
    Breakout Force At Ground Line At Pivot Pin 1810 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 1320 lbs
    Raising Time 4 seconds
    Lower Time 2 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 2 seconds
  • Model 125

    Model 125

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 5 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 1 3/4 in. Bore
    Attachment Cylinder Diameter 1 3/4 in. Bore
    Tractor Horsepower Range 14-30
    Maximum Lift Height To Pivot Pin 7 ft. 1 in.
    Lift Height Under Level Bucket 6 ft. 6 in.
    Clearance With Bucket Fully Dumped 5 ft. 4 in.
    Reach At Maximum Lift Height 1 ft. 3 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 4 in.
    Overall Height In Carry Position 3 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 1250 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 850 lbs
    Breakout Force At Ground Line At Pivot Pin 1810 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 1320 lbs
    Raising Time 4 seconds
    Lower Time 2 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 2 seconds
  • Model 140

    Model 140

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 5 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 1 3/4 in. Bore
    Attachment Cylinder Diameter 1 3/4 in. Bore
    Tractor Horsepower Range 15-30
    Maximum Lift Height To Pivot Pin 7 ft. 10 in.
    Lift Height Under Level Bucket 7 ft. 3 in.
    Clearance With Bucket Fully Dumped 6 ft. 1 in.
    Reach At Maximum Lift Height 1 ft. 10 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 4 in.
    Overall Height In Carry Position 4 ft. 8 in.
    Lift Capacity To Maximum Height At Pivot Pin 1300 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 970 lbs
    Breakout Force At Ground Line At Pivot Pin 1900 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 1480 lbs
    Raising Time 4 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 4 seconds
  • Model 145

    Model 145

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 6 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 in. Bore
    Attachment Cylinder Diameter 2 in. Bore
    Tractor Horsepower Range 20-45
    Maximum Lift Height To Pivot Pin 8 ft. 5 in.
    Lift Height Under Level Bucket 7 ft. 10 in.
    Clearance With Bucket Fully Dumped 6 ft. 7 in.
    Reach At Maximum Lift Height 1 ft. 10 in.
    Maximum Dump Angle 50 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 4 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 1810 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 1350 lbs
    Breakout Force At Ground Line At Pivot Pin 3210 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 2440 lbs
    Raising Time 4 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 155

    Model 155

    ItemsSpecs
    Bucket Size 4 ft.
    Rated Flow 8 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 in. Bore
    Attachment Cylinder Diameter 2 in. Bore
    Tractor Horsepower Range 20-45
    Maximum Lift Height To Pivot Pin 8 ft. 5 in.
    Lift Height Under Level Bucket 7 ft. 10 in.
    Clearance With Bucket Fully Dumped 6 ft. 7 in.
    Reach At Maximum Lift Height 1 ft. 10 in.
    Maximum Dump Angle 50 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 4 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 2030 lbs
    Lift Capactity To Maximum Height 31.5" Forward Of Pivot Pin 1500 lbs
    Breakout Force At Ground Line At Pivot Pin 3780 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 2880 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 160

    Model 160

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 8 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 in. Bore
    Attachment Cylinder Diameter 2 in. Bore
    Tractor Horsepower Range 20-45
    Maximum Lift Height To Pivot Pin 8 ft. 5 in.
    Lift Height Under Level Bucket 7 ft. 10 in.
    Clearance With Bucket Fully Dumped 6 ft. 7 in.
    Reach At Maximum Lift Height 1 ft. 10 in.
    Maximum Dump Angle 50 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 4 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 2020 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 1500 lbs
    Breakout Force At Ground Line At Pivot Pin 3780 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 2880 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 165

    Model 165

    ItemSpecs
    Bucket Size 4 ft.
    Rated Flow 8 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 in. Bore
    Attachment Cylinder Diameter 2 in. Bore
    Tractor Horsepower Range 20-45
    Maximum Lift Height To Pivot Pin 8 ft. 5 in.
    Lift Height Under Level Bucket 7 ft. 10 in.
    Clearance With Bucket Fully Dumped 6 ft. 7 in.
    Reach At Maximum Lift Height 1 ft. 10 in.
    Maximum Dump Angle 50 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 4 ft. 9 in.
    Lift Capacity To Maximum Height At Pivot Pin 1875 lbs
    Lift Capactity To Maximum Height 19.7" Forward Of Pivot Pin 1395 lbs
    Breakout Force At Ground Line At Pivot Pin 3355 lbs
    Breakout Force At Ground Line 19.7" Forward Of Pivot Pin 2500 lbs
    Raising Time 4.1 seconds
    Lower Time 2.5 seconds
    Attachment Dumping Time 3.4 seconds
    Attachment Rollback Time 2.0 seconds
  • Model 180

    Model 180

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 10 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 1/4 in. Bore
    Attachment Cylinder Diameter 2 1/4 in. Bore
    Tractor Horsepower Range 30-60
    Maximum Lift Height To Pivot Pin 9 ft. 6 in.
    Lift Height Under Level Bucket 8 ft. 11 in.
    Clearance With Bucket Fully Dumped 7 ft. 5 in.
    Reach At Maximum Lift Height 2 ft.
    Maximum Dump Angle 45 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 5 ft. 2 in.
    Lift Capacity To Maximum Height At Pivot Pin 2470 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1610 lbs
    Breakout Force At Ground Line At Pivot Pin 3460 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 2420 lbs
    Raising Time 4 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds
  • Model 185

    Model 185

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 10 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 1/4 in. Bore
    Attachment Cylinder Diameter 2 1/4 in. Bore
    Tractor Horsepower Range 30-60
    Maximum Lift Height To Pivot Pin 9 ft. 6 in.
    Lift Height Under Level Bucket 8 ft. 11 in.
    Clearance With Bucket Fully Dumped 7 ft. 5 in.
    Reach At Maximum Lift Height 2 ft.
    Maximum Dump Angle 45 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 5 ft. 2 in.
    Lift Capacity To Maximum Height At Pivot Pin 2470 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1610 lbs
    Breakout Force At Ground Line At Pivot Pin 3460 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 2420 lbs
    Raising Time 4 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds
  • Model 190

    Model 190

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 10 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 1/4 in. Bore
    Attachment Cylinder Diameter 2 1/4 in. Bore
    Tractor Horsepower Range 30-60
    Maximum Lift Height To Pivot Pin 9 ft. 6 in.
    Lift Height Under Level Bucket 8 ft 11 in.
    Clearance With Bucket Fully Dumped 7 ft. 5 in.
    Reach At Maximum Lift Height 2 ft.
    Maximum Dump Angle 45 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 5 ft. 2 in.
    Lift Capacity To Maximum Height At Pivot Pin 2470 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1610 lbs
    Breakout Force At Ground Line At Pivot Pin 3460 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 2420 lbs
    Raising Time 4 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds
  • Model 195

    Model 195

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 10 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 in. Bore
    Attachment Cylinder Diameter 2 in. Bore
    Tractor Horsepower Range 30-60
    Maximum Lift Height To Pivot Pin 9 ft. 6 in.
    Lift Height Under Level Bucket 8 ft. 11 in.
    Clearance With Bucket Fully Dumped 7 ft. 5 in.
    Reach At Maximum Lift Height 2 ft.
    Maximum Dump Angle 45 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 5 ft. 2 in.
    Lift Capacity To Maximum Height At Pivot Pin 1890 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1220 lbs
    Breakout Force At Ground Line At Pivot Pin 2650 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 1850 lbs
    Raising Time 3 seconds
    Lower Time 2 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds

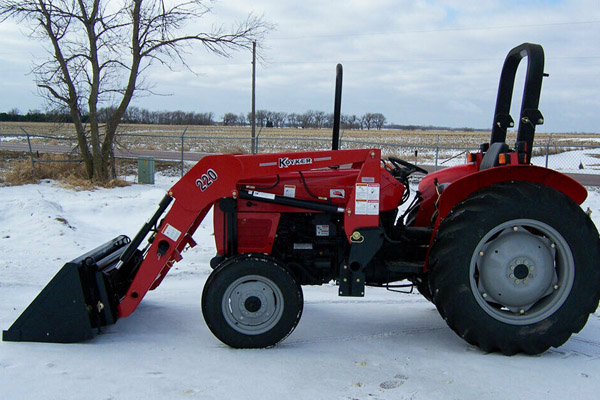

  • Model 220

    Model 220

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 12 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 1/2 in. Bore
    Attachment Cylinder Diameter 2 1/4 in. Bore
    Tractor Horsepower Range 30-75
    Maximum Lift Height To Pivot Pin 10 ft. 2 in.
    Lift Height Under Level Bucket 9 ft. 7 in.
    Clearance With Bucket Fully Dumped 8 ft. 2 in.
    Reach At Maximum Lift Height 1 ft. 9 in.
    Maximum Dump Angle 37 Degrees
    Digging Depth 8 in.
    Overall Height In Carry Position 5 ft.
    Lift Capacity To Maximum Height At Pivot Pin 2750 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1800 lbs
    Breakout Force At Ground Line At Pivot Pin 3960 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 2815 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 245

    Model 245

    ItemSpecs
    Bucket Size 5 ft.
    Rated Flow 15 GPM
    Maximum Pressure 2200 PSI
    Lift Cylinder Diameter 2 1/2 in. Bore
    Attachment Cylinder Diameter 2 1/2 in. Bore
    Tractor Horsepower Range 30-80
    Maximum Lift Height To Pivot Pin 10 ft. 7 in.
    Lift Height Under Level Bucket 9 ft. 9 in.
    Clearance With Bucket Fully Dumped 8 ft. 3 in.
    Reach At Maximum Lift Height 2 ft. 6 in.
    Maximum Dump Angle 43 Degrees
    Digging Depth 5 ft.
    Overall Height In Carry Position 5 ft. 7 in.
    Lift Capacity To Maximum Height At Pivot Pin 2640 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 1740 lbs
    Breakout Force At Ground Line At Pivot Pin 5840 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 4060 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 3 seconds
    Attachment Rollback Time 2 seconds
  • Model 385

    Model 385

    ItemSpecs
    Bucket Size 6 ft.
    Rated Flow 12 GPM
    Maximum Pressure 2500 PSI
    Lift Cylinder Diameter 2 1/2 in. Bore
    Attachment Cylinder Diameter 2 1/2 in. Bore
    Tractor Horsepower Range 45-90
    Maximum Lift Height To Pivot Pin 11 ft. 5 in.
    Lift Height Under Level Bucket 10 ft. 9 in.
    Clearance With Bucket Fully Dumped 8 ft. 10 in.
    Reach At Maximum Lift Height 2 ft. 1 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 4 in.
    Overall Height In Carry Position 5 ft. 10 in.
    Lift Capacity To Maximum Height At Pivot Pin 3325 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 2290 lbs
    Breakout Force At Ground Line At Pivot Pin 4870 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 3520 lbs
    Raising Time 6 seconds
    Lower Time 4 seconds
    Attachment Dumping Time 5 seconds
    Attachment Rollback Time 3 seconds
  • Model 445

    Model 445

    ItemSpecs
    Bucket Size 6 ft.
    Rated Flow 20 GPM
    Maximum Pressure 2500 PSI
    Lift Cylinder Diameter 2 3/4 in. Bore
    Attachment Cylinder Diameter 2 3/4 in. Bore
    Tractor Horsepower Range 60-115
    Maximum Lift Height To Pivot Pin 12 ft.
    Lift Height Under Level Bucket 11 ft. 4 in.
    Clearance With Bucket Fully Dumped 9 ft. 6 in.
    Reach At Maximum Lift Height 2 ft. 10 in.
    Maximum Dump Angle 43 Degrees
    Digging Depth 5 in.
    Overall Height In Carry Position 6 ft. 3 in.
    Lift Capacity To Maximum Height At Pivot Pin 3720 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 2575 lbs
    Breakout Force At Ground Line At Pivot Pin 4720 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 4140 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds
  • Model 510

    Model 510

    ItemSpecs
    Bucket Size 6 ft.
    Rated Flow 20 GPM
    Maximum Pressure 2500 PSI
    Lift Cylinder Diameter 3 in. Bore
    Attachment Cylinder Diameter 3 in. Bore
    Tractor Horsepower Range 60-160
    Maximum Lift Height To Pivot Pin 12 ft. 10 in.
    Lift Height Under Level Bucket 12 ft.
    Clearance With Bucket Fully Dumped 10 ft.
    Reach At Maximum Lift Height 3 ft. 1 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 9 in.
    Overall Height In Carry Position 5 ft. 10 in.
    Lift Capacity To Maximum Height At Pivot Pin 5540 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 3850 lbs
    Breakout Force At Ground Line At Pivot Pin 10,300 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 7820 lbs
    Raising Time 7 seconds
    Lower Time 5 seconds
    Attachment Dumping Time 5 seconds
    Attachment Rollback Time 3 seconds
  • Model 585

    Model 585

    ItemSpecs
    Bucket Size 6 ft.
    Rated Flow 25 GPM
    Maximum Pressure 2500 PSI
    Lift Cylinder Diameter 3.25 in. Bore
    Attachment Cylinder Diameter 3 in. Bore
    Tractor Horsepower Range 90-180
    Maximum Lift Height To Pivot Pin 13 ft. 7 in.
    Lift Height Under Level Bucket 12 ft. 9 in.
    Clearance With Bucket Fully Dumped 10 ft. 10 in.
    Reach At Maximum Lift Height 4 ft.
    Maximum Dump Angle 42 Degrees
    Digging Depth 7 in.
    Overall Height In Carry Position 6 ft. 8 in.
    Lift Capacity To Maximum Height At Pivot Pin 5360 lbs
    Lift Capactity To Maximum Height 31.5" Forward Of Pivot Pin 3735 lbs
    Breakout Force At Ground Line At Pivot Pin 6880 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 5520 lbs
    Raising Time 5 seconds
    Lower Time 3 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds
  • Model 645

    Model 645

    ItemSpecs
    Bucket Size 7 ft.
    Rated Flow 25 GPM
    Maximum Pressure 2500 PSI
    Lift Cylinder Diameter 3 1/2 in. Bore
    Attachment Cylinder Diameter 3 in. Bore
    Tractor Horsepower Range 90-200
    Maximum Lift Height To Pivot Pin 14 ft. 6 in.
    Lift Height Under Level Bucket 13 ft. 8 in.
    Clearance With Bucket Fully Dumped 11 ft. 8 in.
    Reach At Maximum Lift Height 2 ft. 3 in.
    Maximum Dump Angle 45 Degrees
    Digging Depth 7 in.
    Overall Height In Carry Position 6 ft. 11 in.
    Lift Capacity To Maximum Height At Pivot Pin 6780 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 4830 lbs
    Breakout Force At Ground Line At Pivot Pin 7850 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 6030 lbs
    Raising Time 6 seconds
    Lower Time 5 seconds
    Attachment Dumping Time 6 seconds
    Attachment Rollback Time 4 seconds
  • Model 785

    Model 785

    ItemSpecs
    Bucket Size 7'
    Rated Flow 25 GPM
    Maximum Pressure 2900 PSI
    Lift Cylinder Diameter 3 1/2 in. Bore
    Attachment Cylinder Diameter 3 1/4 in. Bore
    Tractor Horsepower Range 145-275
    Maximum Lift Height To Pivot Pin 15 ft. 6 in.
    Lift Height Under Level Bucket 14 ft. 8 in.
    Clearance With Bucket Fully Dumped 12 ft. 5 in.
    Reach At Maximum Lift Height 36 in
    Maximum Dump Angle

    45 Degrees
    Digging Depth 7 in.
    Overall Height In Carry Position 7 ft. 1 in.
    Lift Capacity To Maximum Height At Pivot Pin 7,035 lbs
    Lift Capacity To Maximum Height 31.5" Forward Of Pivot Pin 4,960 lbs
    Breakout Force At Ground Line At Pivot Pin 8,880 lbs
    Breakout Force At Ground Line 31.5" Forward Of Pivot Pin 6,690 lbs
    Raising Time 6 seconds
    Lower Time 4 seconds
    Attachment Dumping Time 4 seconds
    Attachment Rollback Time 3 seconds

Copyright © 2024 - All Rights Reserved - EquipmentLocator.com

Sitemap | Privacy | Terms
