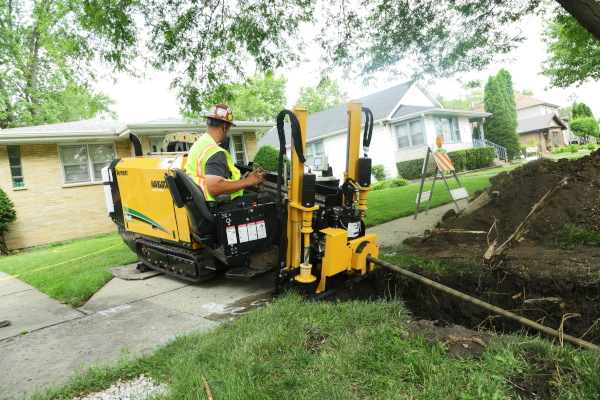

Features
Straightforward controls
Controls with minimal electrical components, bringing you back to the basics with modern technology.
Narrow footprint
This drill is 8.5 in (21.6 cm) narrower in width than the next sized drill in the lineup and can get through a 36-in (91.4-cm) gate or fit on a narrow trailer with other jobsite essentials.
Low sound levels
Low noise emission levels at the operator’s ear of 85 dBa and a guaranteed sound power of 104 dBa makes this drill perfect for installing small utilities in an urban environment with minimal disruption.
More power
Equipped with a 48-hp (35.8-kW) Kohler engine, this drill offers 1200 ft-lb (1627 Nm) of spindle torque and 7850 lb (34.9 kN) of thrust/pullback.
Tracks
Tracks offer ideal traction for operation while providing minimal ground disturbance. This track system design allows a forward ground drive speed of 2.8 mph (4.5 km/h), which is 45% faster than the leading competitor.
Multiple rod options
Equip your drill with either a 6-ft (1.8-m), 1.66 in or 1.31 in (4.2 cm or 3.3 cm) Firestick® drill rod and save time on the job with 180 ft (54.9 m) of on-machine rod carrying capacity.
Specs
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length (Minimum Transport) | 139 in |
| Width (Minimum Transport) | 35.5 in |
| Height (Minimum Transport) | 65 in |
| Weight | 6600 lbs |
| Angle of Approach | 20 deg |
| ENGINE | |
| Make and Model | Kohler KDI1903 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2200 rpm |
| Gross Horsepower | 48 hp |
| Aspiration | Turbocharged |
| Max Fuel Consumption | 2.5 gph |
| Emissions rating | Tier 4 Final (Stage IV) |
| Maximum Operating Angle (Fore/Aft)* | 25 deg |
| Maximum Operating Angle (Left/Right)* | 25 deg |
| OPERATIONAL | |
| Thrust | 7850 lbs |
| Pullback | 7850 lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 159 ft/min |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 1200 ft-lb |
| Maximum Spindle Speed at Max Engine RPM | 182 rpm |
| Minimum Bore Diameter | 2.5 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 2.8 mph |
| Noise Level at Operator's Ear | 85 dB(A) |
| Guaranteed sound power (CE-rating) | 104 dB(A) |
| FLUID CAPACITIES | |
| Fuel Tank | 18 gal |
| Hydraulic System | 25 gal |
| HYDRAULIC SYSTEM | |
| Auxiliary Pump Flow at Maximum Engine RPM | 28.5 gpm |
| Auxiliary Pump Relief Pressure | 3000 psi |
| Thrust/Pullback Pump Flow at Max Engine RPM | 27.1 gpm |
| Thrust/Pullback Pump Relief Pressure | 3000 psi |
| Rotation Pump Flow at Maximum Engine RPM | 27.2 gpm |
| Rotation Pump Relief Pressure | 3000 psi |
| DRILLING FLUID SYSTEM OPTION ONE | |
| Maximum Flow | 9 gpm |
| Maximum Pressure | 750 psi |
| Brand | FMC |
| On Board Tank Capacity | 25 gal |
| FEATURES | |
| Breakout System | Standard hyd vise |
| Drilling Lights | Optional |
| Stakedown System | Standard |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| DRILL PIPE | |
| Drill Rod Thread | 1.31 Firestick (#200) |
| Thread Type | Firestick (#200) |
| Length | 6 ft |
| Rod Diameter | 1.31" (3.3 cm) |
| Joint Inside Diameter | .8 in |
| Weight | 18 lbs |
| Minimum Bend Radius | 57 ft |
| DRILL PIPE OPTION TWO | |
| Drill Rod Thread | 1.66 Firestick (#200) |
| Thread Type | Firestick (#200) |
| Length | 6 ft |
| Rod Diameter | 1.66" (4.2 cm) |
| Joint Inside Diameter | .8 in |
| Joint Outside Diameter | 1.88" (4.8 cm) |
| Weight | 26 lbs |
| Bend Radius | 95.5' (29.1 m) |
