Features
The new quiet
A 99 dB(A) guaranteed sound power level and an operator ear rating of 78.7 dB(A) makes it one of the quietest drills on the market — creating less neighborhood disturbance and enabling easier communication among the crew.
Need for speed
A carriage speed of 206 fpm (62.8 m/min) helps operators install more linear feet per day. A 219 rpm rotational speed matches larger drills in the 20,000 to 30,000 lb (89 to 133.4 kN) class.
Common controls
Common control platform from Vermeer assists in operator efficiency and training.
Get to work faster

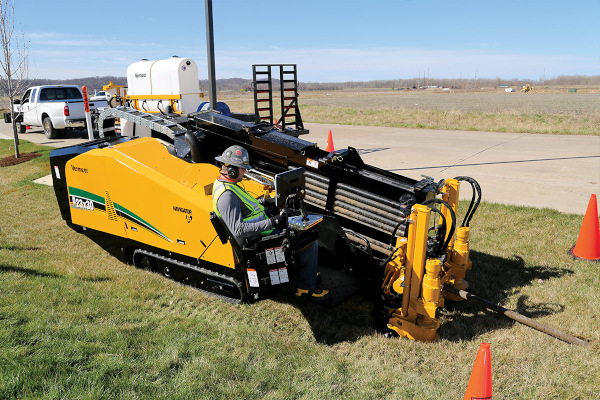

The D23x30 S3 can track up to 3.3 mph (5.3 km/h), helping operators get into position for their next shot more quickly, while the increased tractive effort makes it easier to climb slopes and make sharp turns.
Specs
| General Dimensions and Weights | |
| Length (Minimum Transport) | 208 in |
| Width (Minimum Transport) | 52.5 in |
| Height (With Cab) | 75 in |
| Weight | 14380 lbs |
| ENGINE | |
| Make and Model | Deutz TCD3.6L4 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2000 rpm |
| Gross Horsepower | 100 hp |
| Aspiration | Turbo |
| ENGINE - OPTION TWO | |
| Make and Model | Deutz TCD3.6L4 |
| Fuel Type | Diesel <2000ppm sulfur content |
| Maximum Engine RPM | 2000 rpm |
| Gross Horsepower | 100 hp |
| Aspiration | Turbo |
| OPERATIONAL | |
| Thrust | 24000 lbs |
| Pullback | 24000 lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 180 ft/min |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 3000 ft-lb |
| Maximum Spindle Speed at Max Engine RPM | 219 rpm |
| Minimum Bore Diameter | 4 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3 mph |
| Noise Level at Operator's Ear | 78.7 dB(A) |
| Guaranteed sound power (CE-rating) | 99 dB(A) |
| FLUID CAPACITIES | |
| Fuel Tank | 35 gal |
| Hydraulic Tank | 30 gal |
| Hydraulic System | 40 gal |
| DRILLING FLUID SYSTEM OPTION ONE | |
| Maximum Flow | 35 gpm |
| Maximum Pressure | 1300 psi |
| FEATURES | |
| Breakout System | Standard hydraulic vise |
| Drilling Lights | Optional |
| Flow Indicator | Standard |
| Stakedown System | Standard |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| OPTIONAL CABIN (EMEA ONLY) | |
| Weight with cab | 17328 lbs |
| Width with cab | 72 in |
| Height with cab | 93.7 in |
