Features
THREE-STAGE CYCLONIC FILTRATION
Engineered to help prolong filter and blower life, the system is suitable for wet and dry applications. The cyclones use a tuned vortex system in which the outer vortex spiral forces small particles to fall into a separate canister. The filtered stream then passes up through the inner cyclone tube and is carried to the final poly filter.
COMPACT DESIGN

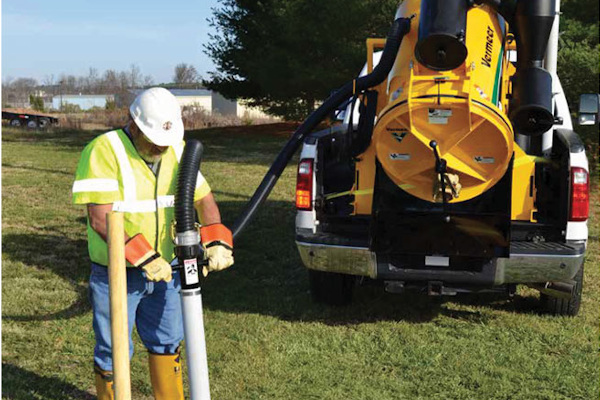

With a 24-hp (17.9-kW) gas engine, combined with a compact design, the ECO25 is ideal for small jobs in the gas, water and fiberoptic construction markets along with valve box cleanout projects.
ECONOMICAL SOLUTION
Ideal for jobsite cleanup and fluid management, the ECO25 gas series provides an economical solution for managing drill fluids onsite.
TILT TANK
Efficiently offload debris.
Specs
| SKID | |
| Length | 98 in (248.9 cm) |
| Width | 54 in (137.2 cm) |
| Height | 80 in (203.2 cm0 |
| Empty weight | 1480 lbs (671.3 kg) |
| ENGINE | |
| Make and Model | Honda gas |
| Horsepower | 24 hp (17.9 kW) |
| Fuel tank capacity or type | 14 gal (52.9 L) |
| WATER TANK | |
| Water capacity | 50 gal (189.3 L) |
| Number of Tanks | 1 |
| High pressure pump flow rate | 4 gpm (15.1 L/min) |
| High Pressure Pump | 3000 psi (206.8 bar) |
| High pressure hose length | 50 ft (15 m) |
| Low Water Shutoff | Electric |
| SPOIL TANK | |
| Spoil tank capacity | 100 gal (378 L) |
| Door type | Manual |
| Tank Lift Type | Standard |
| VACUUM | |
| Type of Filters | 2 micron washable |
| Hose length | (1) 16 ft (4.9 m) |
| Hose width/diameter | 3 in |
| Vacuum | 575 cfm (16.3 cubic m/min) |
| Vacuum Mercury | 10 inHg (0.3 bar) |
| CONTROL PANEL | |
| Controls | Curbside |
| Gauges | Analog |
