Features
40-HP (29.8-KW) TURBOCHARGED KOHLER KDI DIESEL ENGINE
Equipped with a 40-hp (29.8-kW) turbocharged Kohler KDI diesel engine. This engine meets emission compliance without the need for a diesel particulate filter (DPF), reducing cost and complexity of the engine.
FLEXIBLE TRACK CONFIGURATIONS
A wide or narrow track configuration is available to meet your needs.
INTEGRATED DISPLAY
The integrated display provides the operator machine information such as engine hours, battery voltage and engine oil pressure.
EFFICIENT LIFT CAPACITY

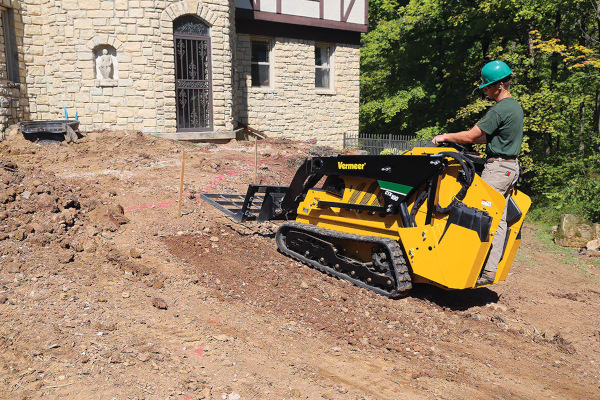

The CTX100 is equipped with exceptional lift capacity to efficiently transport materials on tough jobsites.
WRAPAROUND PLATFORM
Built for comfort, the unit is designed with a wraparound platform to provide extra space and stability while operating.
HIGH STANDARDS
The CTX100 comes standard with a dual hydraulic system capable of providing 15.5 gpm (58.7 L/min) of hydraulic flow to power the most demanding attachments, and low flow offers 8.1 gpm (30.7 L/min) to give maximum control.
Specs
| GENERAL DIMENSIONS AND WEIGHTS | |
| Design | Stand-on/Track drive |
| Length with Standard Bucket | 111.5 in |
| Length without Standard Bucket | 89.5 in |
| Width with Standard Bucket | 42 in |
| Width Without Standard Bucket | 36 in |
| Height | 58 in |
| Height (to Hinge Pin) | 88 in |
| Ground Clearance | 6.8 in |
| Weight (Standard Bucket, Diesel Engine) | 3515 lbs |
| Weight (No Bucket, Diesel Engine) | 3400 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | Kohler KDI 1903 |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 14.5 gal |
| Gross Horsepower | 40 hp |
| Cooling System | Liquid |
| Maximum Angle of Inclination | 35 deg |
| TRACK PERFORMANCE | |
| Rated Operating Capacity (SAE) | 1035 lbs |
| Ground Pressure (Narrow Tracks) | 5.3 psi |
| Ground Pressure (Wide Tracks) | 4.2 psi |
| Travel Speed | 4.4 mph |
| OPERATIONAL | |
| Steering | Dual axis, pilot-operated joystick |
| Lift | Dual axis, common bucket lever |
| Curl | Dual axis, common bucket lever |
| HYDRAULIC SYSTEM | |
| Hydraulic Aux System Flow | 15.5 gpm |
| Hydraulic System Pressure | 3045 psi |
| Tank capacity | 12 gal |
