Features

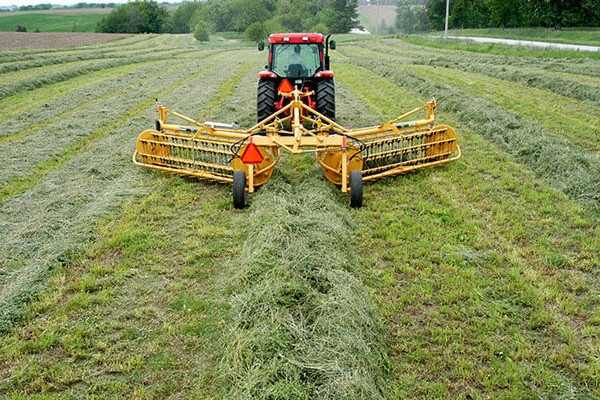

RUBBER-MOUNTED RAKE TEETH
Keep hay clean because the hydraulically driven baskets have rubber-mounted rake teeth that engage the crop, not the ground.
IMPROVED TINE DESIGN
Built for durability with a proven design that prevents the tines from engaging the ground.
LARGE, CASTER-TYPE WHEELS
Glide over uneven terrain with large, caster-type wheels to cushion your ride.
OPTIONAL BASKET SPEED CONTROL
Match the raking action to the crop and field conditions without adjusting speed using the optional basket speed control.
Specs
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 18 ft |
| Raking width maximum | 23 ft |
| Windrow width minimum | 36 in |
| Windrow width maximum | 72 in |
| Transport Width | 8.4 ft |
| Transport Length | 21.8 ft |
| Transport Height | 5.9 ft |
| Total Weight | 3220 lbs |
| Tongue Weight | 1400 lbs |
| Transport tire size | ST205/75D15 |
| Drive | Hydraulic |
| RAKING COMPONENTS | |
| Tines per basket | 120 |
| Bars per basket | 6 |
| Basket length | 9.5 ft |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 35 hp |
| Hydraulic Type | 2 double-acting |
| Hydraulic Pressure | 1800 psi |
| Hydraulic flow rate | 8 gpm |
| FEATURES | |
| Highway Lights | Optional |
| Center splitter | Optional powered |
